Automatic C/Z Channel Roll Forming Machine

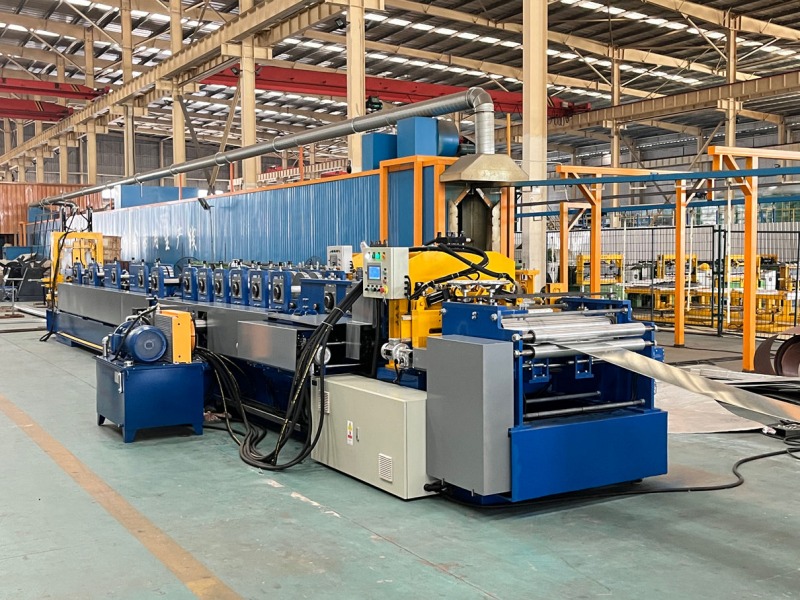

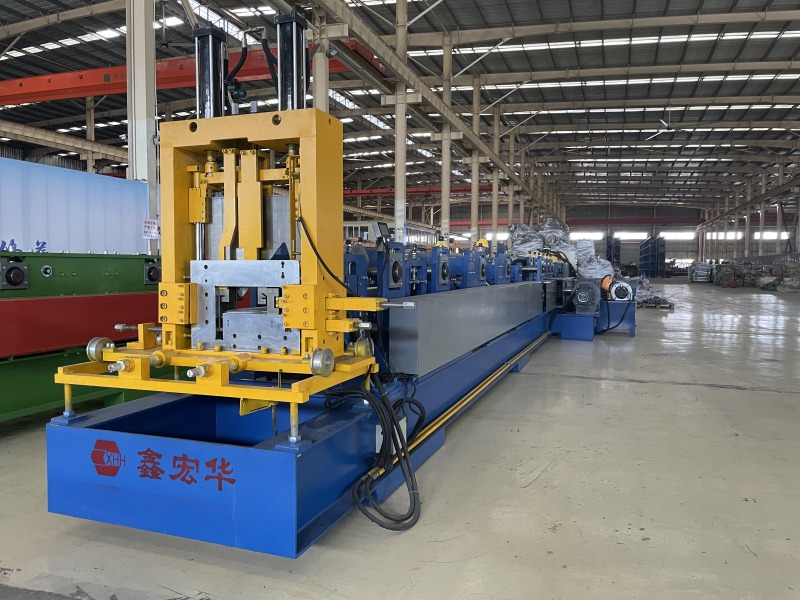

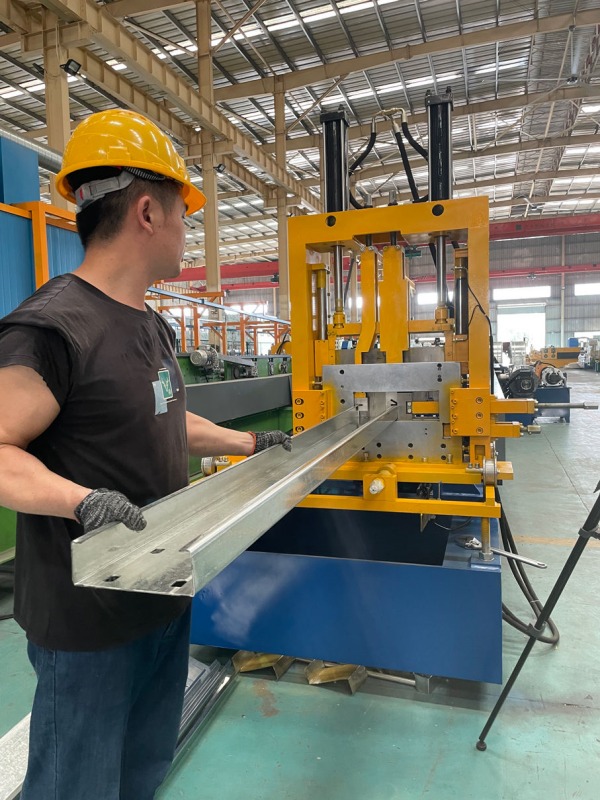

A automatically adjustment C/Z Channel Roll Forming Machine, C-shaped or Z-shaped metal channels.

Inquiry now

Product Details

Specification:

Overall Dimensions	700012001500mm
Weight	6000 KGS
Main Motor Power	servo motor 30 kW
Voltage	380V/50HZ/3PH

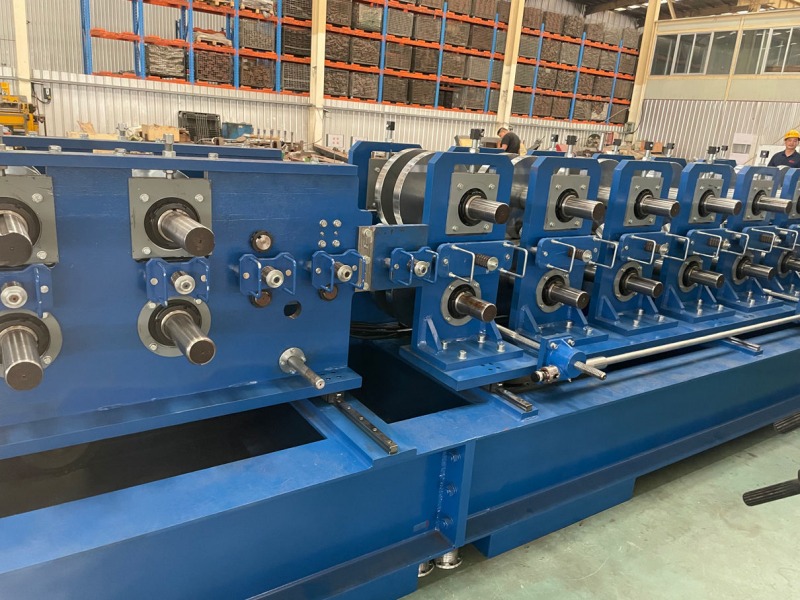

Forming Stations	23 stations (including leveling stations)
Roll Forming Speed	0-30m/min
Material Thickness	1.2-3.0mm (Galvanized Steel G235-G550)
Edge Width	10-20mm
Effective Width	100-300mm
Web Height	40-100mm
Feeding Width	200-540mm
Cutting Tolerance	±2mm
Roller Material	Cr12/GCr15 Steel, heat treatment Polished & Hard Chrome Plated
Shaft Material	40Cr with shaft diameter 90mm
Machine frame	400# Hbeam and A3 steel with 30mm thickness
Cutting System	Hydraulic Cutting Device
Blade Material	Cr12Mov, High-Frequency Quenching (60-62°)
Applicable Material	Galvanized Steel

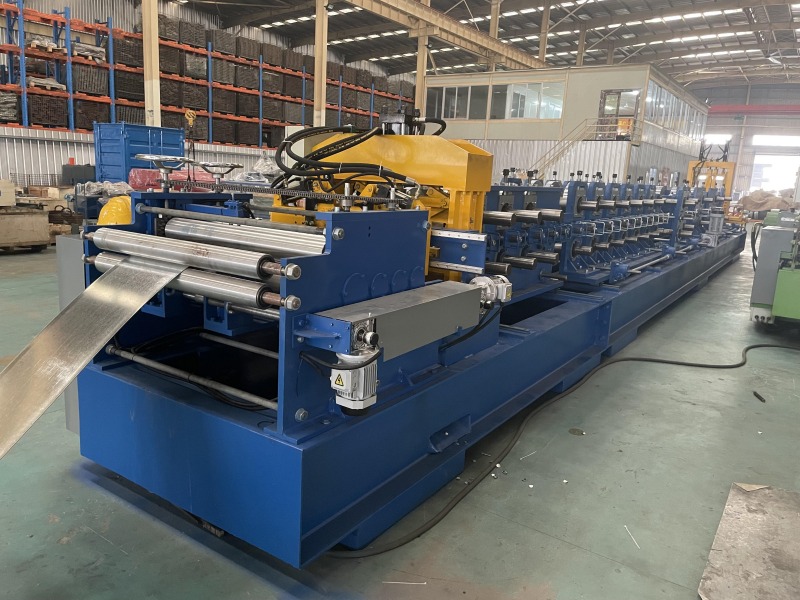

The automatic CZ exchange roll forming machine is a complete roll forming system designed to manufacture CZ purlins in a variety of specifications. This advanced equipment includes key components such as a passive loading frame, leveling device, automatic punching system, front shear device, main forming unit, continuous post-forming shear unit, hydraulic station, and a computerized control system.

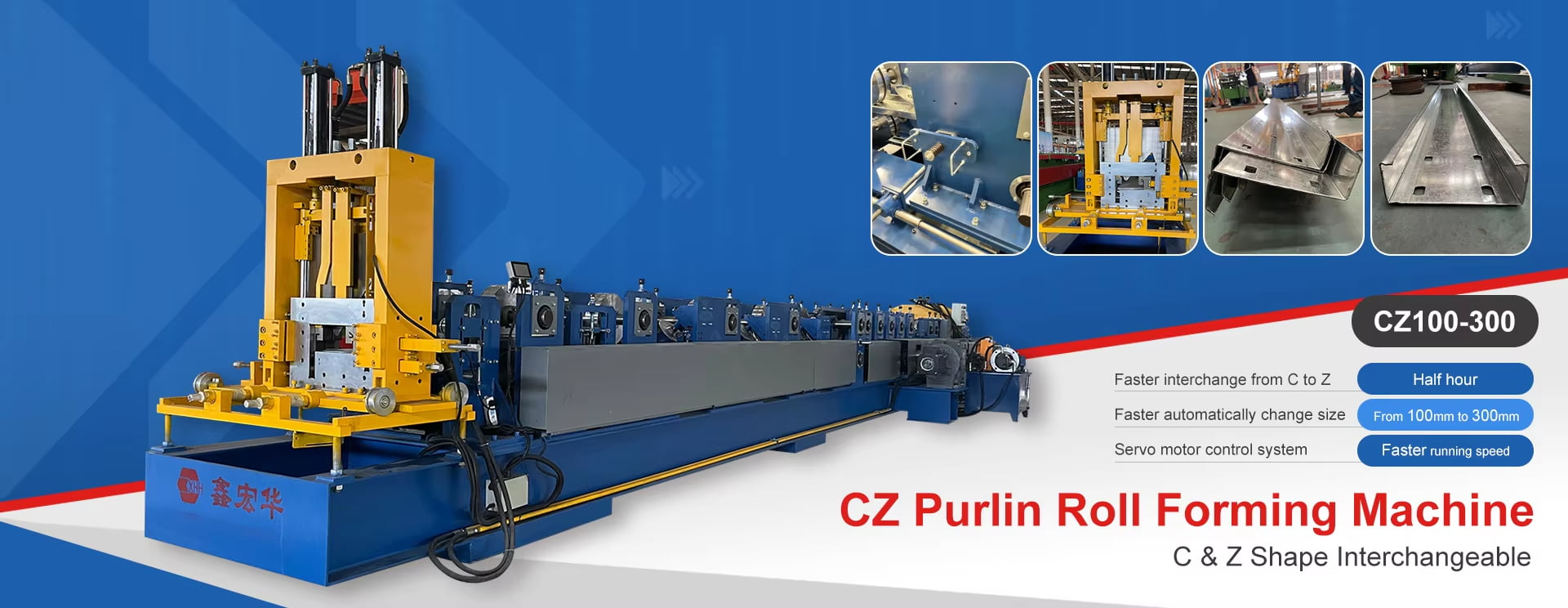

With the fully automatic CZ interchangeable section roll forming machine, you can swiftly switch between C and Z purlins in just 30 minutes. It also allows rapid size adjustments for any model between 100-300mm within 5 minutes, meeting your specific requirements with ease. The forming cutter supports continuous cutting of any model in this range without needing to change tools. Additionally, it features automatic centering and feeding port adjustments, precise fixed-length cutting, high-speed forming, reducing labor costs, and significantly boosting production efficiency.

Benefits of using a Metal CZ Channel Roll Forming Machine are as follows:

1. Make different purlin size without changing rollers or spacers.

2. Quick change any size from 100mm to 300mm within 1min.

3. Pre Cutting system(also can add post-cutter),no need changing cutter for different size.

4. Easy to operate, low maintenance cost.

5. Infinite sizing from 100-300mm,help to save material.

6. Optional Punch hole at any position of purlin web and flange.

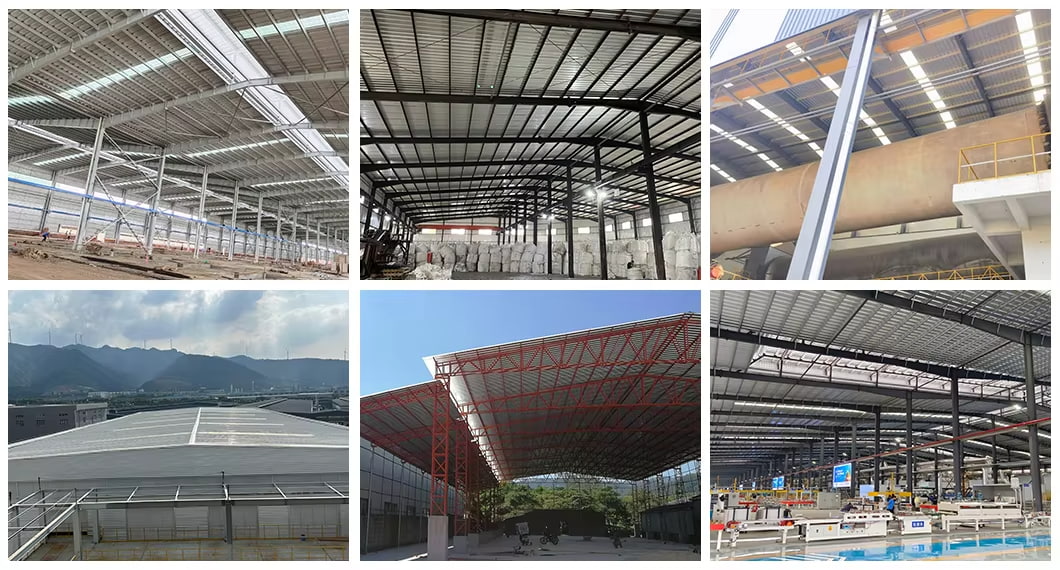

Metal CZ Channel Roll Forming Machines are frequently employed in the construction, automotive, aerospace, and manufacturing sectors. They are essential for producing structural components and various building materials.

OUR SERVICE：

1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

To explore more machines, please browse our comprehensive selection here.
