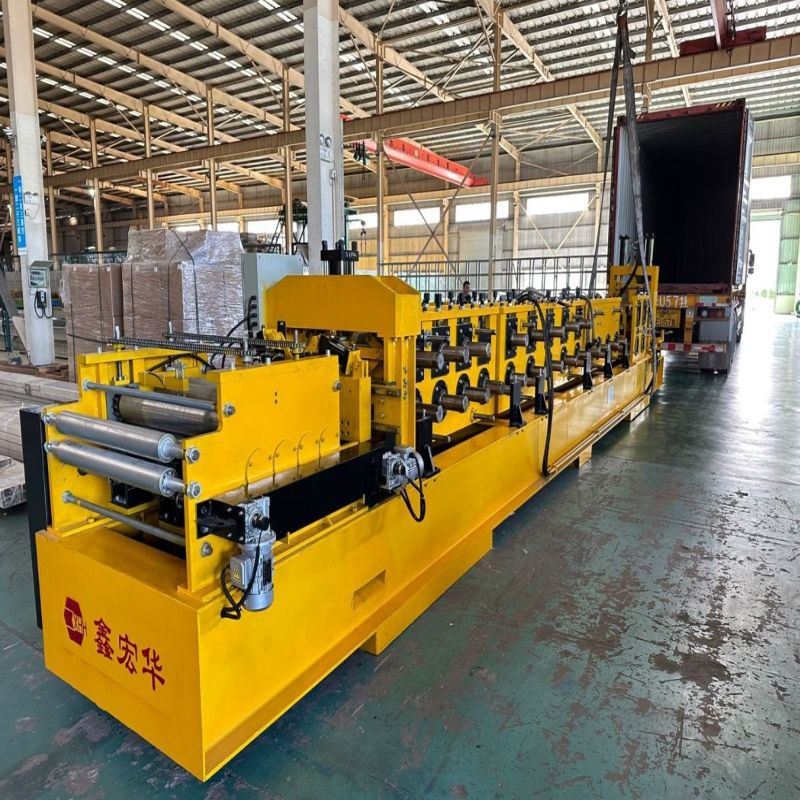

Full Automatic C Beams Purlin Keel Roll Forming Metal Frame Making Machine
|
Main Technical Data:
|
|
|
Size
|
C60-250
|
|
Dimension
|
7800*1600*1600mm
|
|
Hydraulic Motor Power
|
18.5KW
|
|
Motor Power for adjusting C size
|
0.37kw*2+0.75kw
|
|
Motor Power for guiding
|
0.18kw*2
|
|
Motor Power for adjusting punching hole
|
0.18kw*2
|
|
Forming Steps
|
13Steps+3Steps for reshaping
|
|
Forming Speed
|
8m/min,16m/min,25m/min
|
|
Voltage
|
380V/50HZ/3PH
|
|
Effective Width
|
60-250mm
|
|
Material Width
|
122-485mm
|
|
Flange Height of Purlin
|
30-70mm
|
|
Material Thickness
|
1.2-3.0mm
|
|
Control System
|
PLC Computer Control
|
|
W:
|
60~300 mm
|
|
H:
|
30~70 mm
|
|
E:
|
10, 15 mm
|
|
Main Accessories:
|
|
1) Main Purlin Forming Machine
|
|
2) 5 Tons Hydraulic Uncoiler
|
|
3) Automatic Guide Device
|
|
4) Automatic Reshaping Device
|
|
5) PLC Computer Controlling System With Touch Screen
|
|
6) Hydraulic Motor System
|
|
7) Pre-punching Holes Device( the buyer decide the size of punching holes )
|
|
8) Pre-cutting Device(Available to add post-cutter)
|
|
9) Run Out Table
|
|
10) Operation Manual
|
It is a type of light keel steel forming machine primarily utilized for the production of studs and tracks in house framing. Its areas of application are particularly extensive, including factory decoration and warehouse cages. The roofs and new walls of locomotive hangars are constructed from the relevant products employed to press tiles.
