YX65-300 Automatic Standing Seam Roof Panel Roll Forming Machine
YX65-300 Automatic Standing Seam Roof Panel Roll Forming Machine is designed for producing high-precision standing seam roofing panels for industrial, commercial and architectural roofing projects.
The machine features stable roll forming, easy PLC control and reliable continuous operation. It is suitable for processing steel and aluminum materials and can produce straight standing seam panels with consistent profile quality.
For the YX65-300 model, the finished panel width is 300 mm. The same machine platform can also be customized for different profile widths such as 330 mm, 400 mm, 430 mm and 500 mm according to project requirements.
With concealed fastening and interlocking standing seam design, the finished roofing panels provide a clean appearance, reliable waterproof performance and good compatibility with insulated roofing systems.

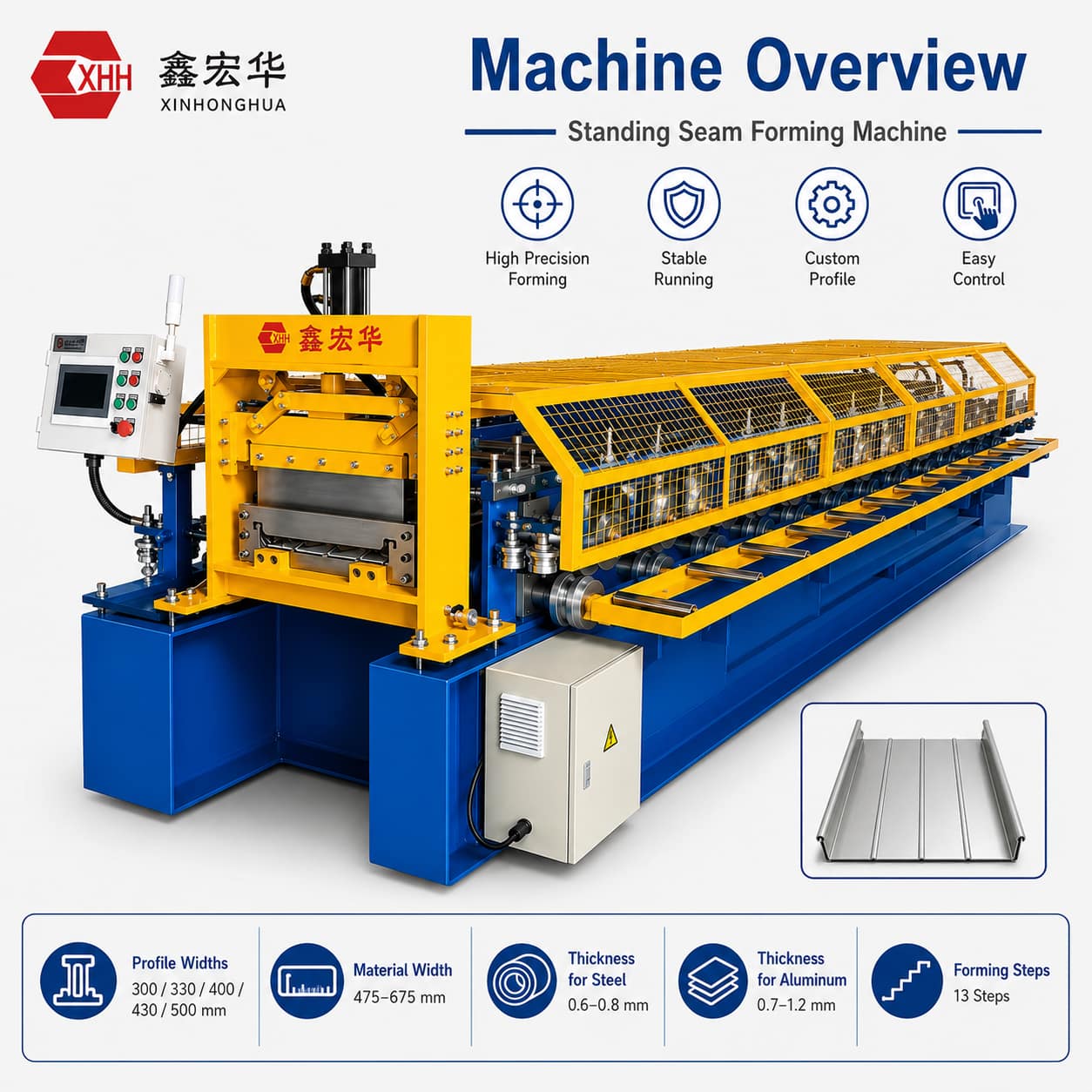

The YX65-300 Standing Seam Roof Panel Roll Forming Machine is developed for the production of standing seam metal roofing panels used in modern steel buildings, factories, warehouses, airports, exhibition halls and other large roofing projects.
The machine combines stable mechanical structure, precision forming rollers and PLC control to achieve consistent panel dimensions and smooth forming performance.
High Precision Forming
Precision roll forming stations help maintain consistent panel shape and dimensional accuracy during continuous production.
Stable Running

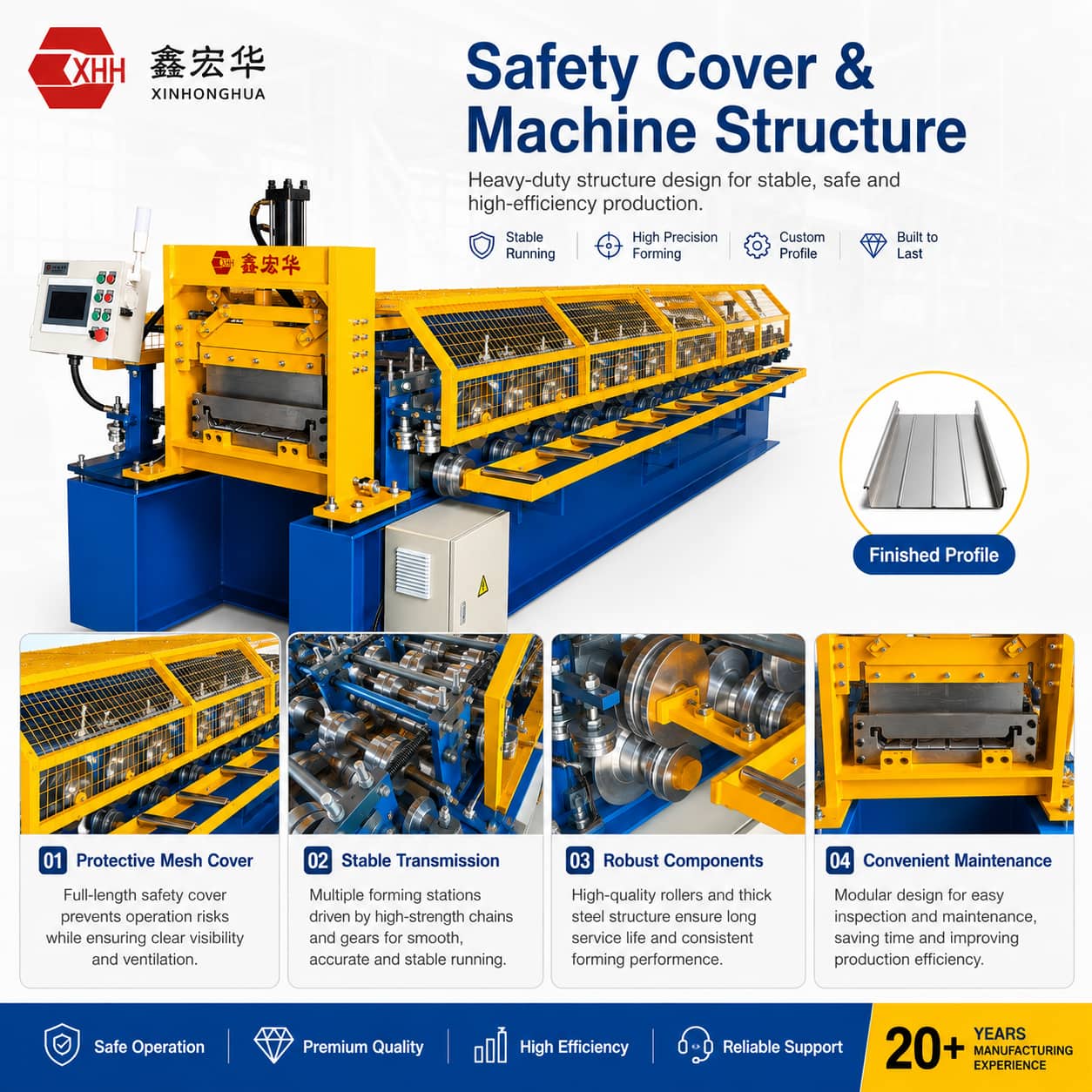

The heavy-duty machine frame and reliable transmission system are designed for long-term and continuous operation.
Easy PLC Control
The machine is equipped with a PLC control system and user-friendly operation interface for convenient production adjustment.
Custom Profile Options
The machine can be customized for different standing seam panel widths and project requirements.
Suitable for Steel and Aluminum
The production line can process both steel and aluminum roofing materials within the specified thickness range.

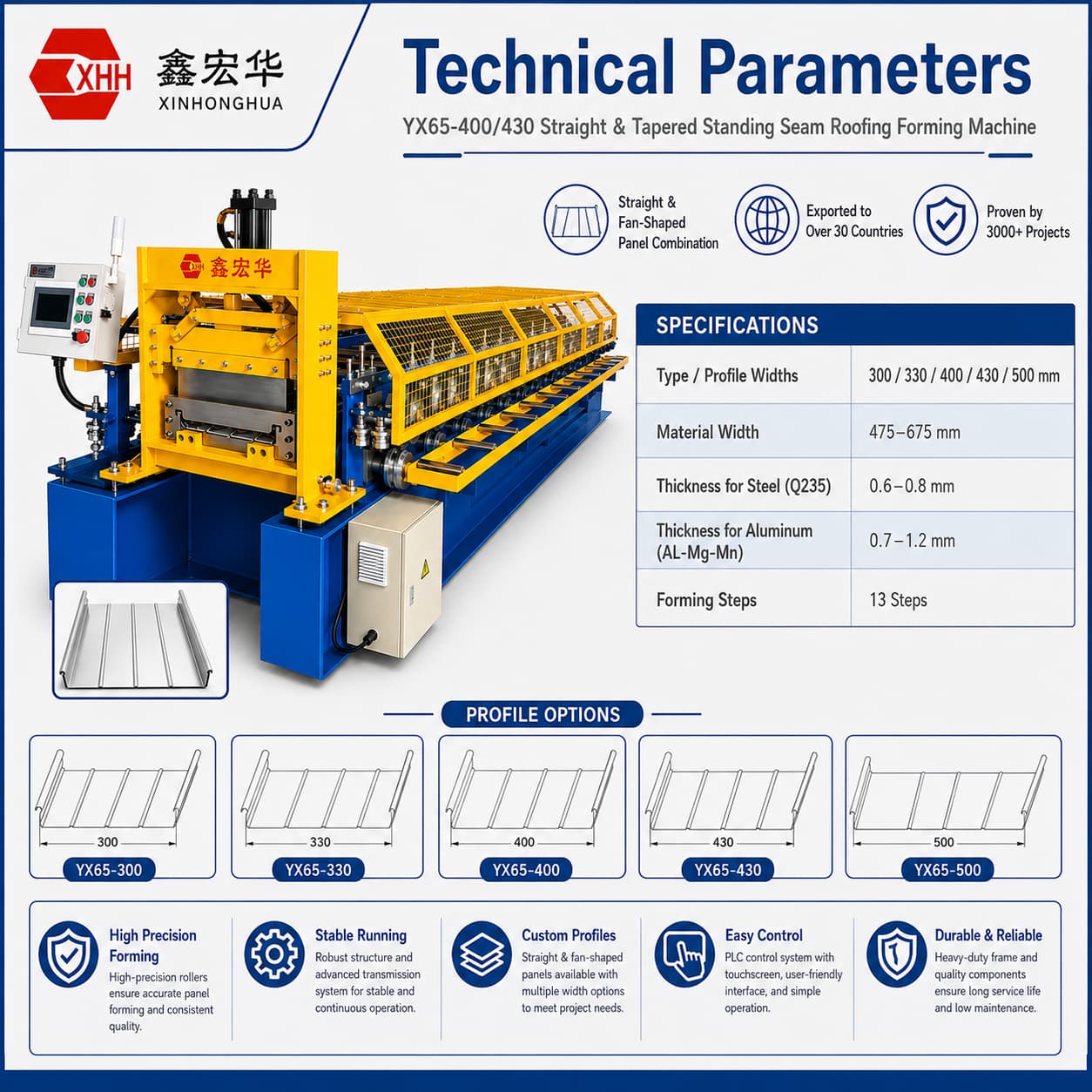

Model: YX65-300
Panel Type: Standing Seam Roof Panel
Finished Profile Width: 300 mm
Optional Profile Widths: 300 / 330 / 400 / 430 / 500 mm
Material Width Range: 475–675 mm
Steel Thickness: 0.6–0.8 mm
Aluminum Thickness: 0.7–1.2 mm
Forming Steps: 13 Stations
Control System: PLC Control
Main Application: Metal Standing Seam Roofing System
The YX65 series can be customized according to required profile width, material type and project specifications.

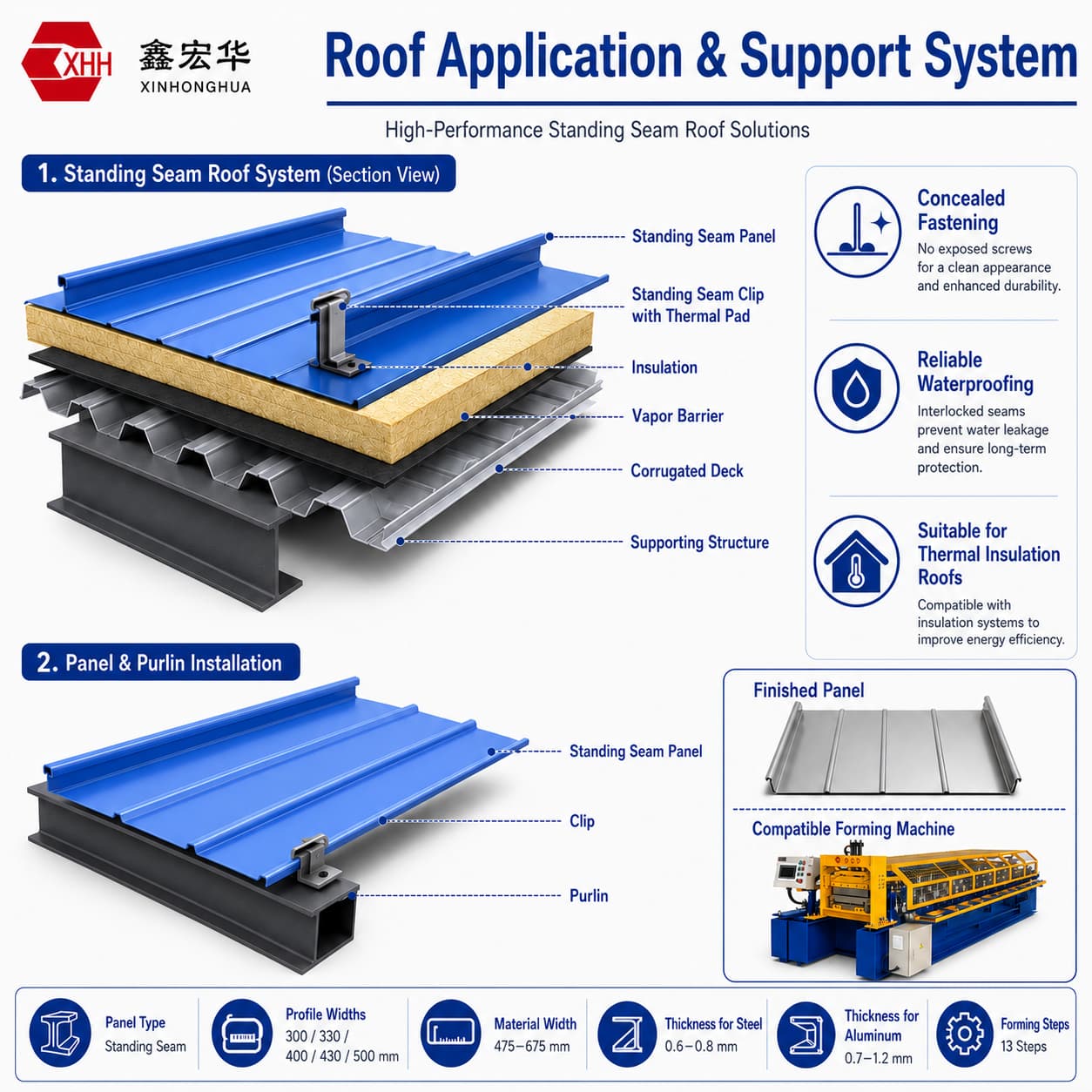

Standing seam roofing panels are widely used in modern metal roofing systems because of their clean appearance, concealed fastening structure and reliable waterproof performance.
The roof system can normally include:
The concealed fastening system helps reduce exposed screws on the roof surface and improves overall appearance and long-term weather resistance.
The finished standing seam panels can be installed on steel purlins using dedicated standing seam clips.
This installation method allows the roof panel to connect securely with the supporting structure while maintaining a clean roof surface.
The system is suitable for:
The YX65 standing seam forming machine series can be configured for different finished panel widths:
YX65-300 – 300 mm
YX65-330 – 330 mm
YX65-400 – 400 mm
YX65-430 – 430 mm
YX65-500 – 500 mm
Different profile sizes can be supplied according to customer drawings and roofing system requirements.
Xinhonghua focuses on roll forming equipment for metal roofing and steel building applications.
Our standing seam forming machines can be customized according to:
Before production, customers can provide profile drawings or panel samples so that the machine configuration can be confirmed according to the actual project requirements.
