Specifications:
| Type | YX65-300-600 |
| Height of Roofing | 65mm |
| Effective Width | 300-600mm |
| Thickness for steel | 0.7-0.9mm |
| Thickness for aluminum | 0.9-1.2mm |
| Forming steps | 3Steps |
| Dimension | 1500*850*2000mm |
| Motor Power | 4KW |
| Hydraulic Power | 3KW |
| Forming Speed | 10-16m/min |
| Min. Width of Tapered Roofing to Curved | 250mm |
| Max. Width of Tapered Roofing to Curved | 500mm |
| Voltage | 380V/50HZ/3PH |
| Weight | 1500KGS |
| Control System | PLC Control |
| Control System | 1set, PLC (Delta), Touch Screen (SCHNEIDER), Inverter (Delta), Encoder (Omron) |
| Material of rollers | GCr15 |

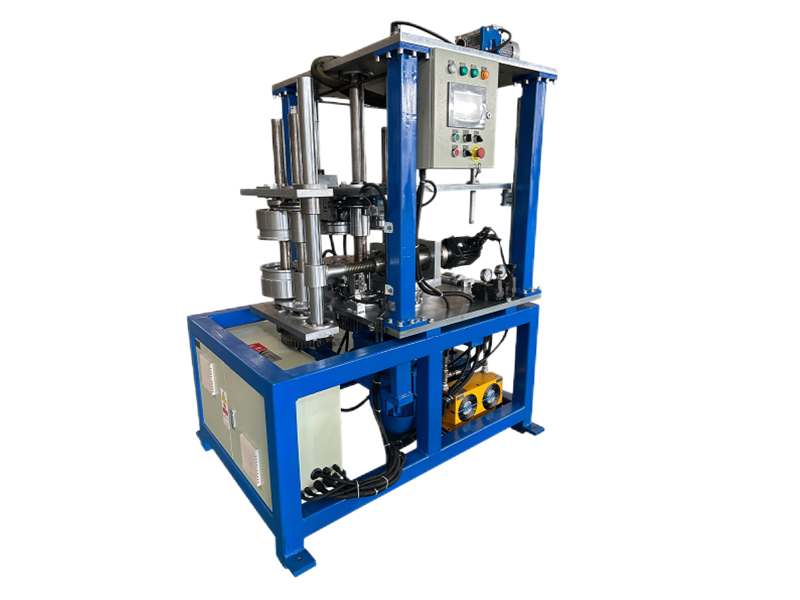

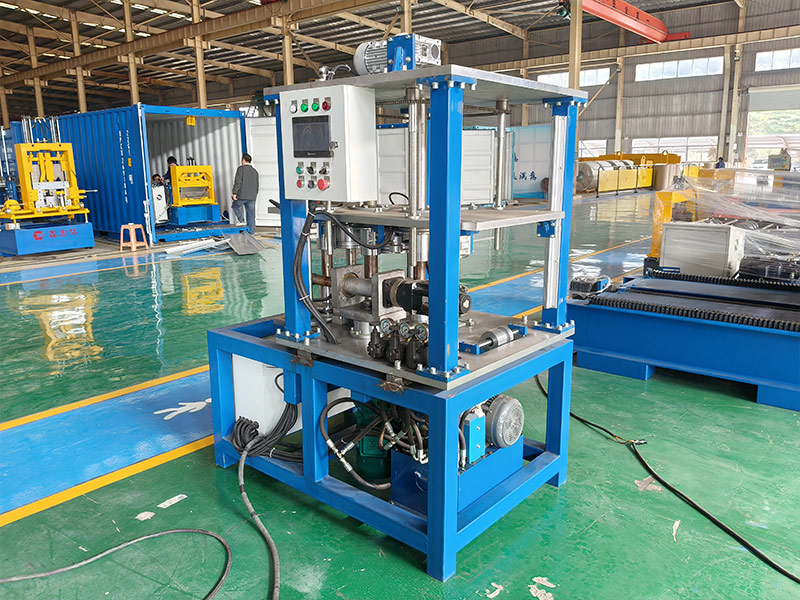

Benefits of the curved standing seam machine:
1.Smooth, problem-free production of varying radii within a single panel
2.Individually driven bending units for both male and female legs
3.Easy manual width adjustment using a hand wheel
4.Specially engineered radius pressure system ensures consistent and precise results

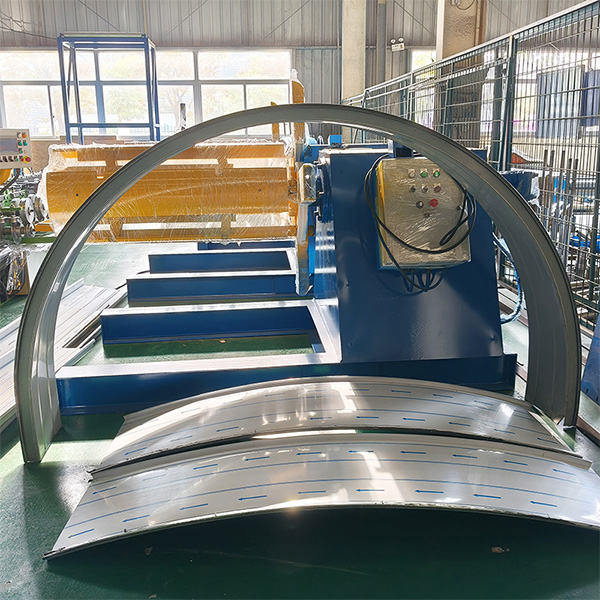

The radius of a primary bending arc is as follows:
1.Min. Curved Radius for Aluminum Roofing:Convex Curved 2M, Concave Curved 6M
2.Min. Curved Radius for Steel Roofing:Convex Curved 4M, Concave Curved 10M
3.Min. Curved Radius for Tapered Roofing:Convex Curved 10M, Concave Curved 12M

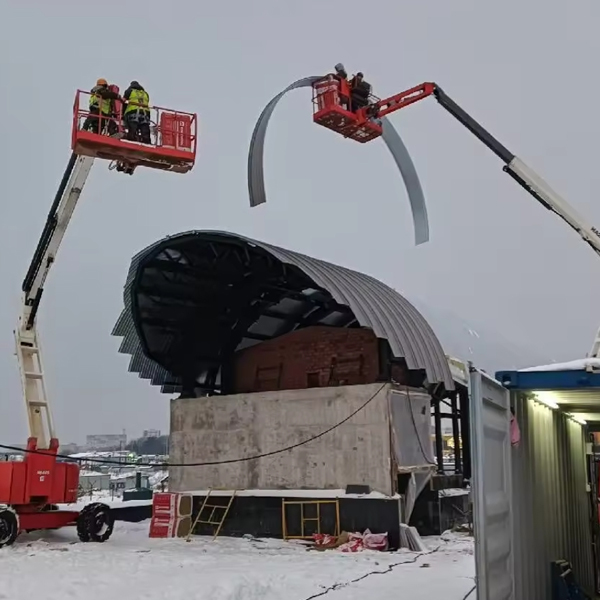

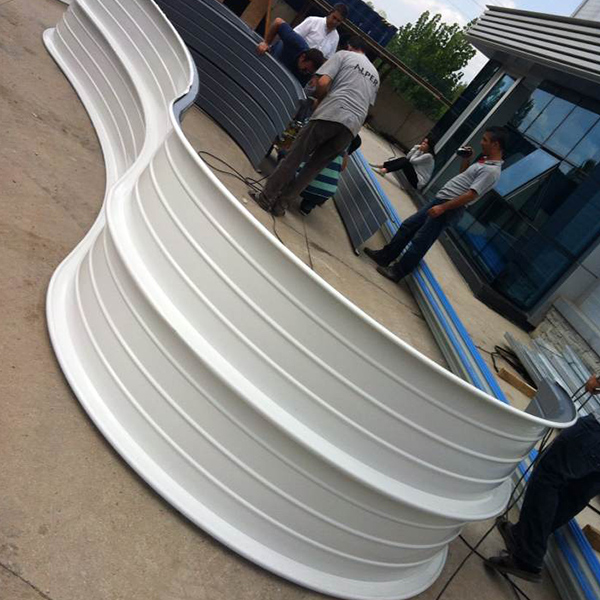

Profile & Application：
Advantage of Portable Standing Seam Forming Metal Roofing Machine 1. Capable of producing various sizes with a single machine, eliminating the need to change molds or cutting blades. 2. Easy to install,the control system and hydraulic station are integrated into the machine. Simply connect the main power cable to start.
