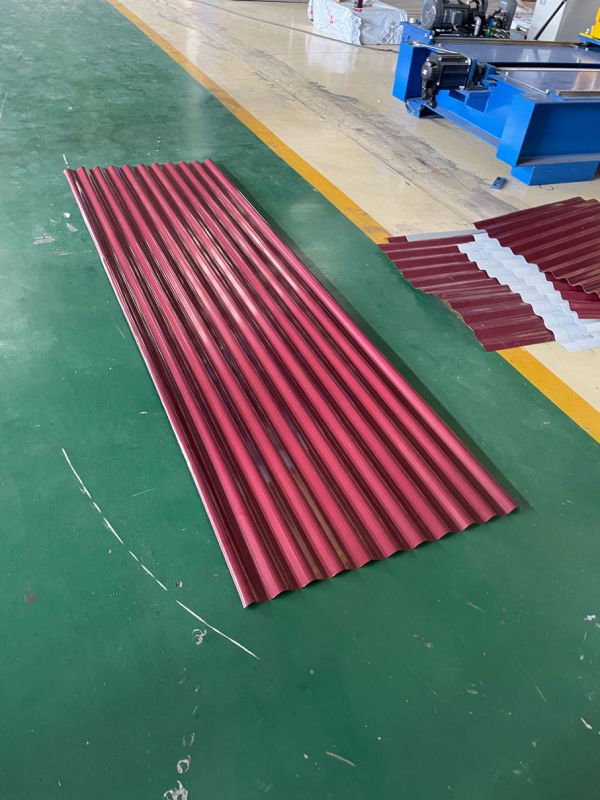

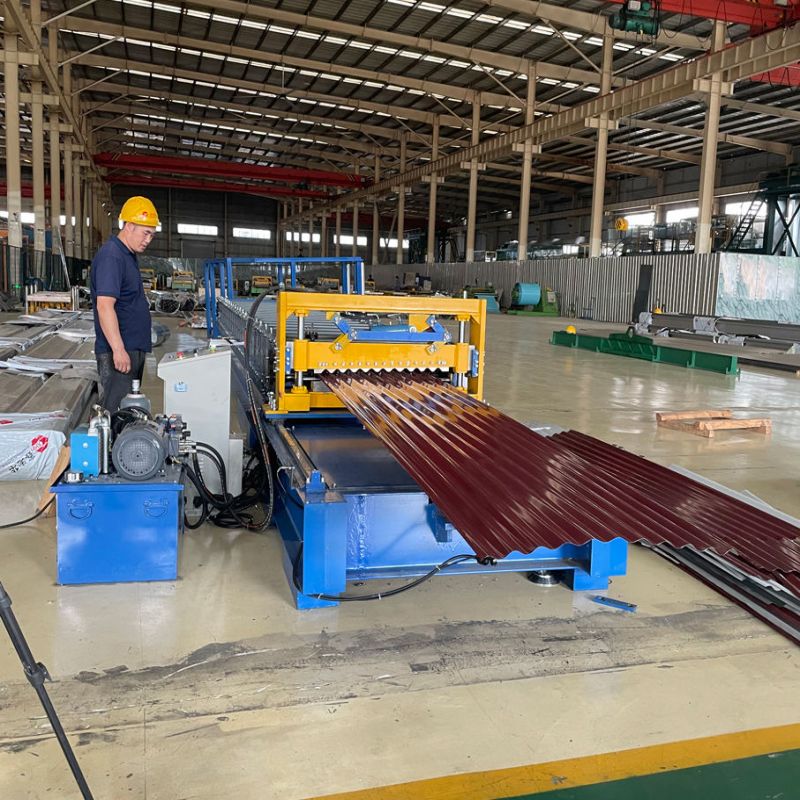

Roll Forming Corrugated Iron Profiles Sheet Metal Processing Machines

Roll Forming Corrugated Iron Profiles Sheet Metal Processing Machines

R Panel Roll Forming Machine

Corrugated Roll Forming Machine

Double Layer Roll Forming Machine

Products Description
1.
Model Number
YX18-762/838
2.
Size
6000*1500*1500mm
3.
Weight
4000KGS
4.
Motor Power
5.5KW
5.
Hydraulic Power
2.2KW
6.
Voltage
380V/50HZ/3PH
7.
Forming Steps
16steps
8.
Processing Speed
8-12m/min
9.
Thickness
0.4-0.6mm
10.
Feeding Material Width
914mm/1000mm
11.
Effective Width
8762mm/838mm
12.
Height of Roofing
19mm
Main Accessories:
(1)
Main Forming Machines
(2)
5 Tons Manual Uncoiler
(3)
Hydraulic System
(4)
PLC Computer Controlling System With Touching Screen
(5)
Hydraulic Forming Cutter
(6)
Tools
(7)
Operation Manual
(8)
Run Out Table
Decoiler

Decoiler

(1) MaxWidth:1250mm
(2) Inner Diameter: 450mm
(3) out diameter:1500mm
(4) max. loading capacity:5Tons

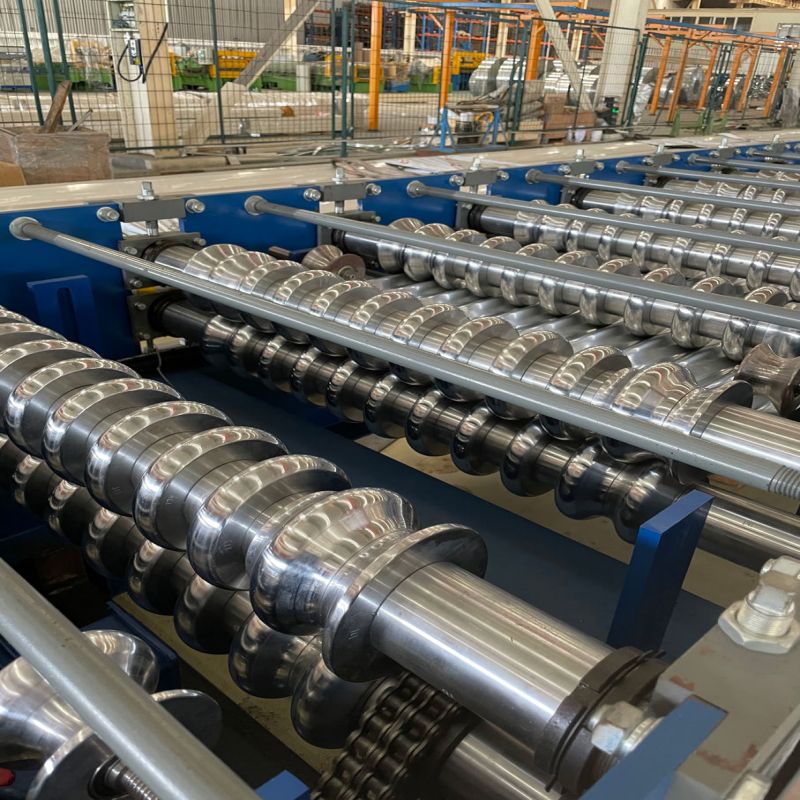

Roll Former

Roll Former

(1) Material Thickness:0.3mm-0.8mm PPGI and Gl
(2) No.of Roller Stations:14 to 18steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr

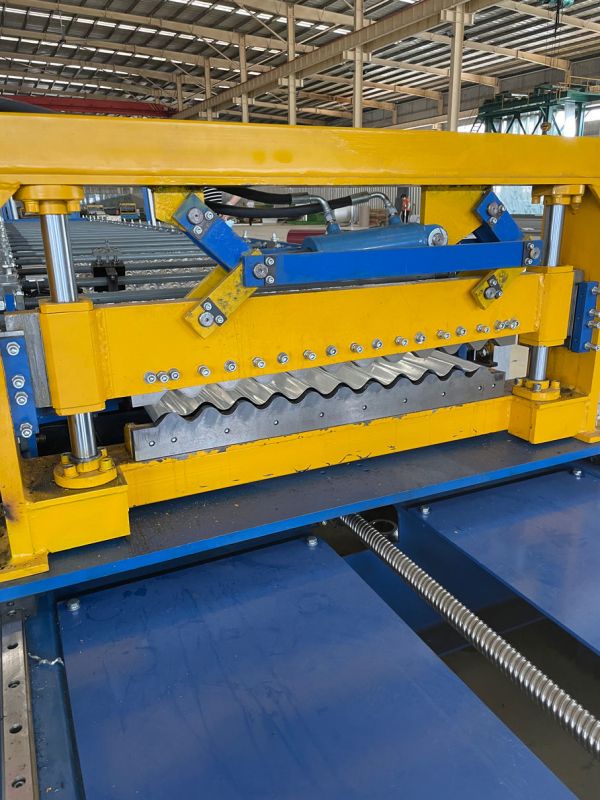

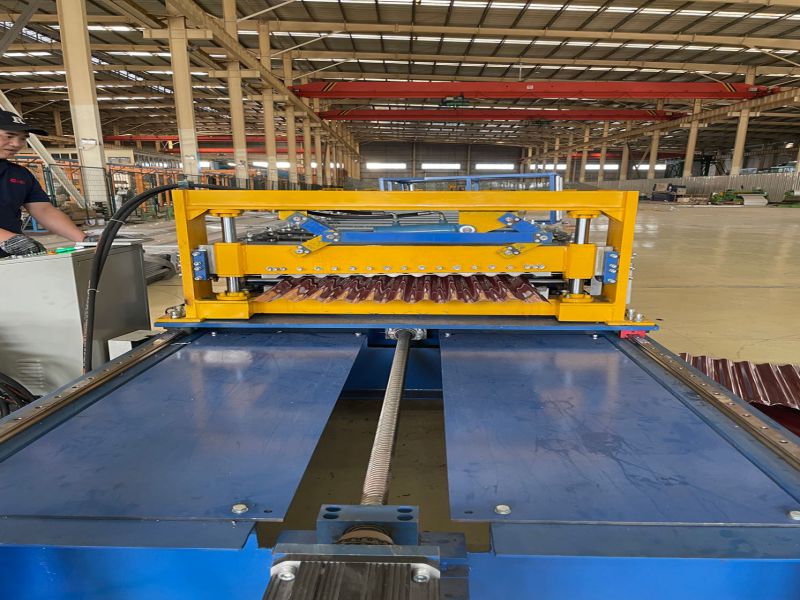

 Cut-Off Device

Cut-Off Device

(1) Material for Cut-off Modular:Crl2mov after treatment
(2) Hardness for Heat Ttreatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off(4)Motor for Hydraulic Stand:2.2KW
PLC Control Box

PLC Control Box

(1) Type:PLC Frequency Contorol Systemwith touch screen
(2) PLC Brand:Schneider
Product Application
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
Recommended by seller


Zinc Standing Seam Metal Roof Forming Contractors Snap Lock Metal Panels Machine Suppliers

$8,000-15,000 / set

1 set



Cheap Standing Seam Roof Panel Curving Machine Factory

$26,200-29,800 / set

1 set



Glazed Metal Tiles Making Roof Panel Roll Forming Production Machine Price

$15,000-25,000 / set

1 set

We are the roll forming machine manufacturer, and we can give you the most favorable price.

Welcome to consult price!
