Tiles IBR Sheet Roof Tile PBR Panel Roll Forming Machine

Tiles IBR Sheet Roof Tile PBR Panel Roll Forming Machine

Packing:

- For the machine or production line, we will use plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
- For the key parts such as the roll forming rollers set, we will use the metal frame to package.
All Steadily fastened in the container in a suitable manner with steel ropes and locks, being suitable for long-distance transportation.
Products Description
Model Number
YX13.7-875
Size
6500*1200*1500mm
Weight
5500KGS
Motor Power
4KW
Hydraulic Power
1.5KW
Voltage
380V/50HZ/3PH
Forming Steps
14 steps
Processing Speed
8-14m/min
Thickness
0.3-0.6mm
Feeding Material Width
1000mm
Effective Width
875mm
Height of Roofing
13.7mm
Main Accessories:
(1)
Main Forming Machines
(2)
Manual Uncoiler
(3)
Hydraulic System
(4)
PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching screen, cencorder and frequency changer)
(5)
Hydraulic Forming Cutter
(6)
Tools
(7)
Operation Manual
Decoiler

Decoiler

(1) MaxWidth:1250mm
(2) Inner Diameter: 450mm
(3) out diameter:1500mm
(4) max. loading capacity:5Tons

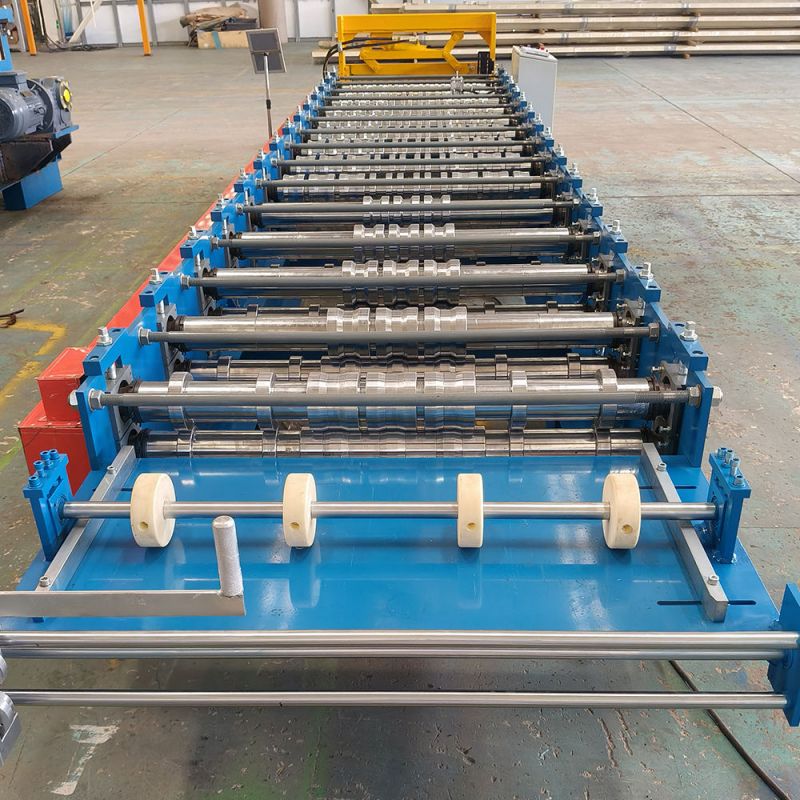

Roll Former

Roll Former

(1) Material Thickness:0.3mm-0.8mm PPGI and Gl
(2) No.of Roller Stations:14 to 18steps
(3) Materal for Rollers: high grade 45#steel polished and plated hard chrome
(4) Material for Shaft:40Cr

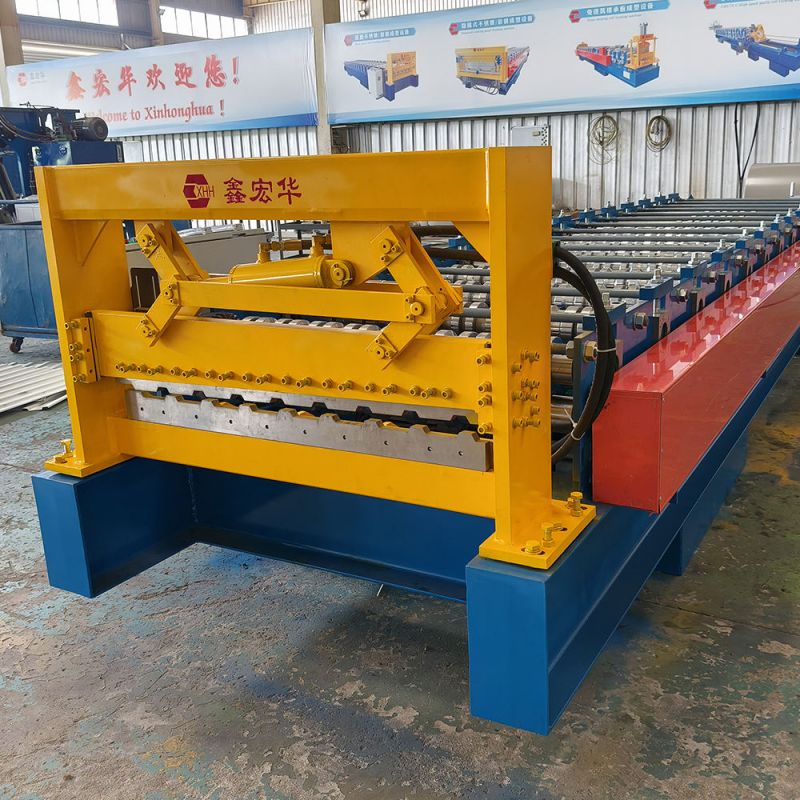

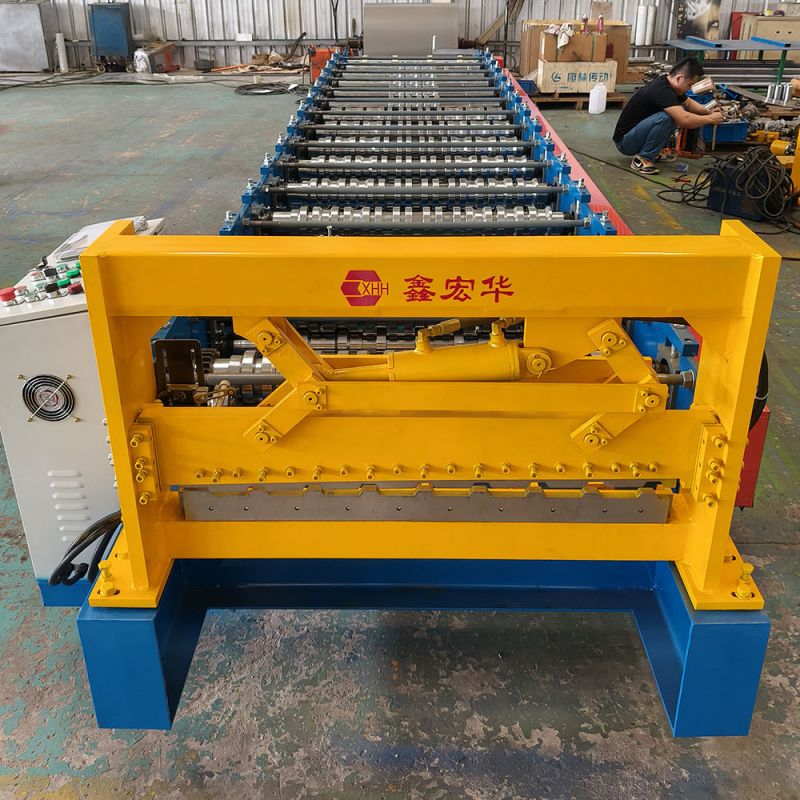

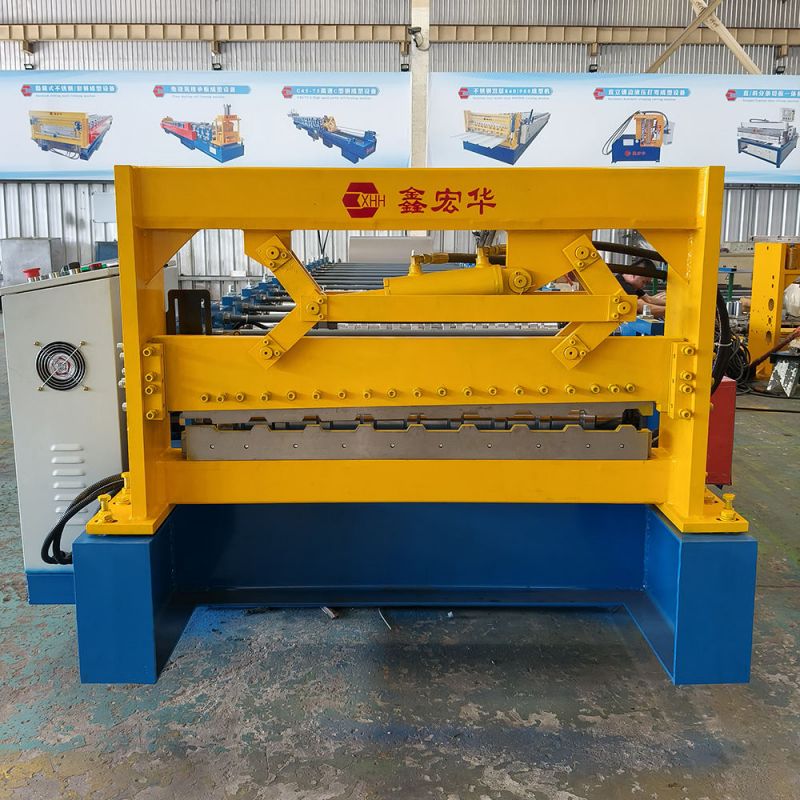

Cut-Off Device

Cut-Off Device

(1) Material for Cut-off Modular:Crl2mov after treatment
(2) Hardness for Heat Ttreatment:HRC60-62°
(3) Cut-off Type:Hydraulic Cut-off(4)Motor for Hydraulic Stand:2.2KW
PLC Control Box

PLC Control Box

(1) Type:PLC Frequency Contorol Systemwith touch screen
(2) PLC Brand:Schneider
Product Application
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
