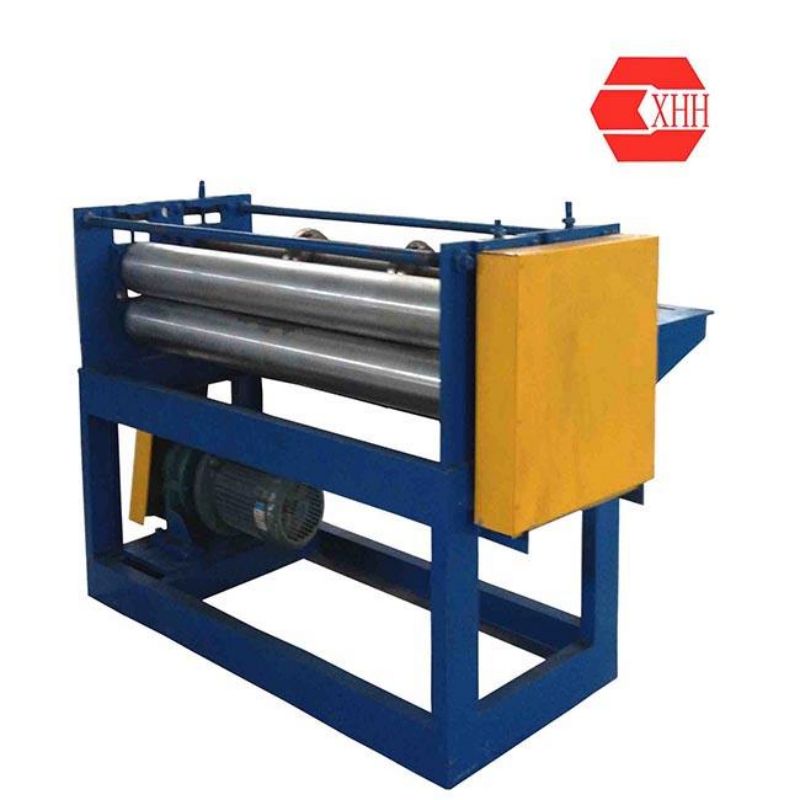

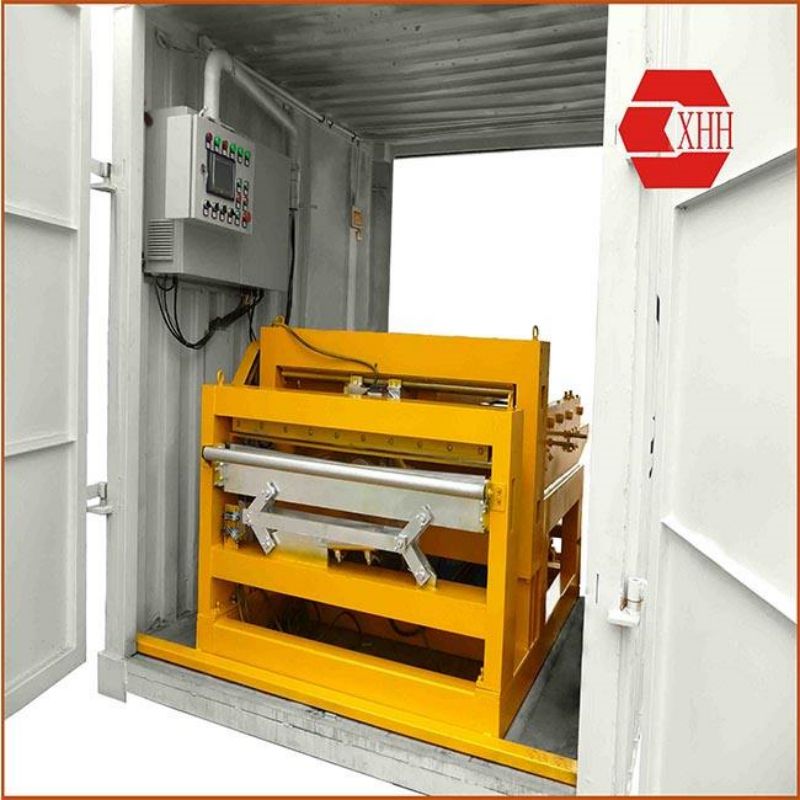

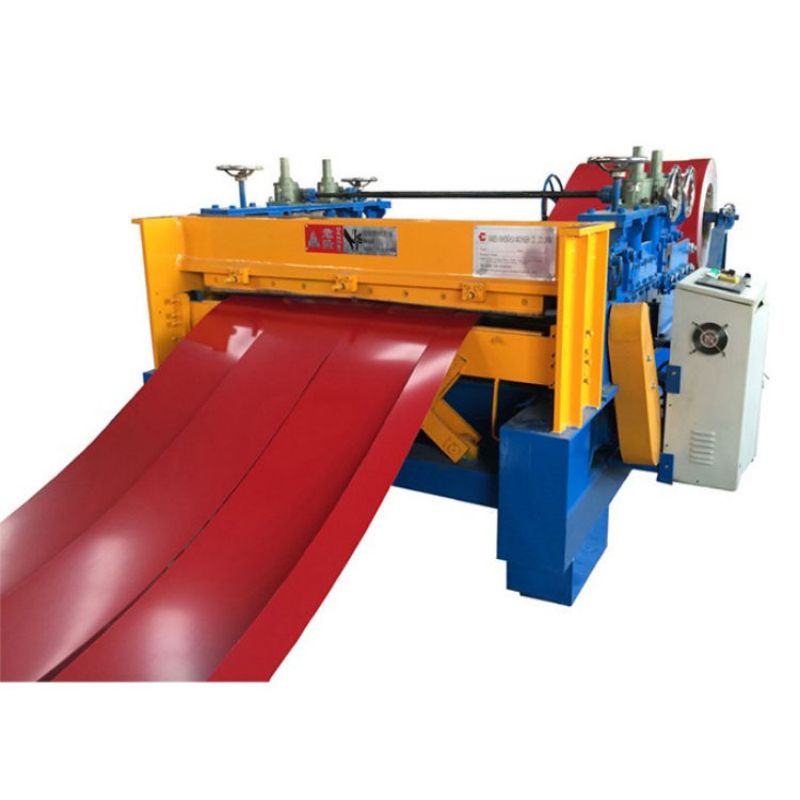

Automatic Steel Coil Aluminum Cutting Machine

Automatic Steel Coil Aluminum Cutting Machine

1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. ONE-YEAR Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.

Products Description
Model Number
ST1.0-1200
FCS2.0-1300
Size
2500*1600*1500mm
2200*2300*1500mm
Weight
2500KGS
3500KGS
Hydraulic Motor Power
4KW
7.5KW
Processing Speed
8-10m/min
10-15m/min
Voltage
380V/50HZ/3PH
380V/50HZ/3PH
Material Thickness for Aluminum
0.4-1.0mm
0.25-2.0mm
Material Thickness for Steel
0.4-0.8mm

Material Width
400-1200mm
1300mm
litting Tapered Ratio
1:50

Usage
Slitting and cutting the metal sheets with straight and tapered shape

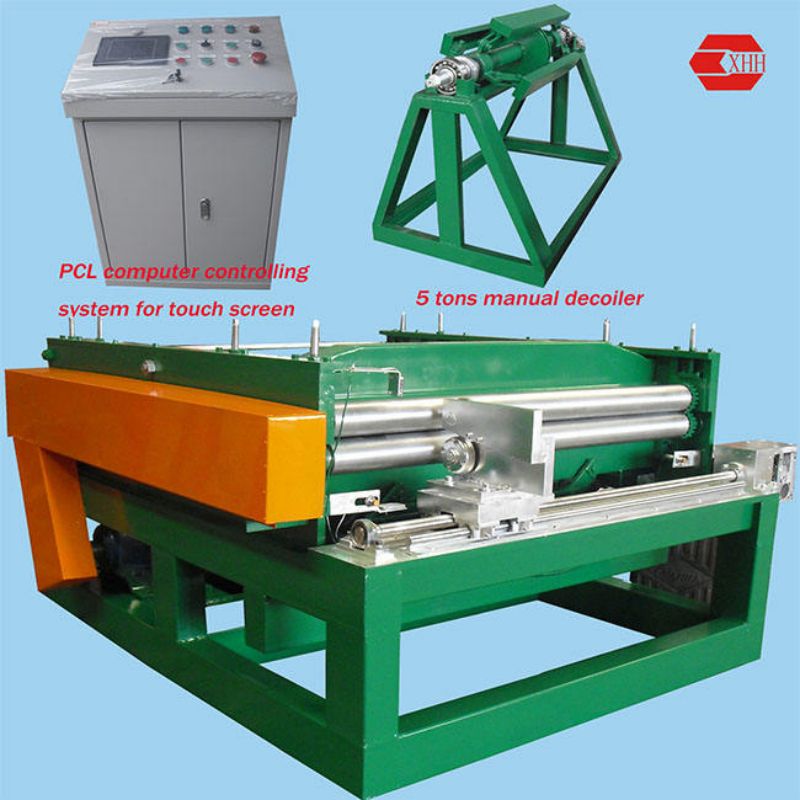

Main Accessories:

(1) Main machine;
(2) Automatic Up And Down Table For Feeding Device;
(3) Flattening Device;
(4) Hydraulic Motor System;
(5) PLC Computer Controlling System With Touching
Screen( Brand: Schineder for PLC, touching screen, encorder and frequency changer );
(6) Hydraulic Cutting Device;
(7) Receiving Table( Length:2500mm);
(8) Tools;
(9) Operation Manual in English;
Usage:
--fattening and cutting the metal materials: Carbon steel Hot rolled coils;
--The buyer need provide enough metal materials for testing machine.

Feature:
--Adopts flattening device, cutting device, PLC computer controlling system and hydraulic motor, easily and conveniently to operate;
--Suitable to flatten and cut the colored prepainted sheets, alvanized steels, Aluminum sheets, etc
Product Application
Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
